Wilo
Atmos GIGA N

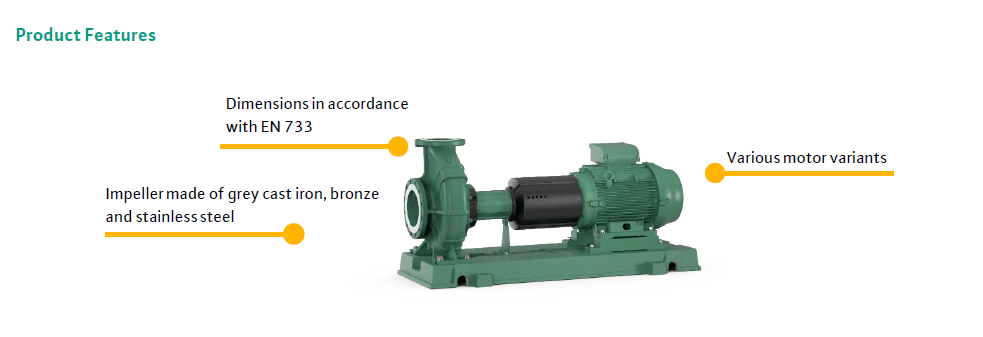

Product Features



  • Cataphoretic coating
  • IE motors (IE1, IE2, or I3 as an optional)
  • Dimensions in accordance with EN EN733
  • Impeller made of grey cast iron, bronze and stainless steel
  • Various motor variants

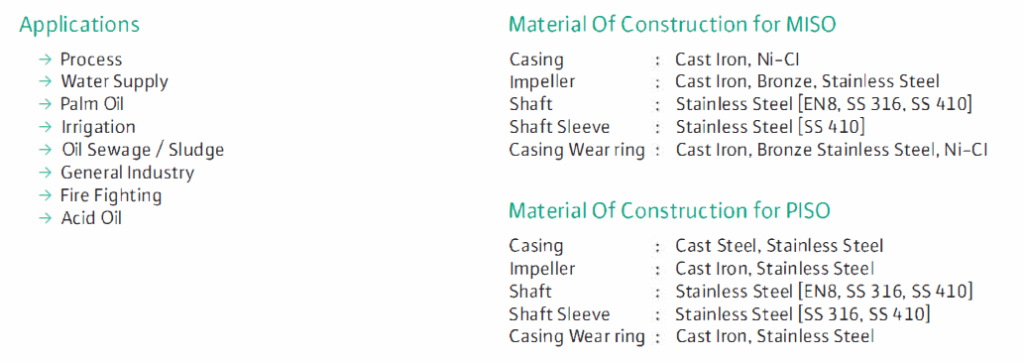

Application
  • The pumping of heating liquid (in accordance with VDI 2035), palm oil, acid oil, industrial waste, cold water and water glycol mixtures without abrasive substances in heating, cold water and cooling systems.
  • Applications for palm oil mill, shipping, irrigation, building services, general industry, power stations, etc.

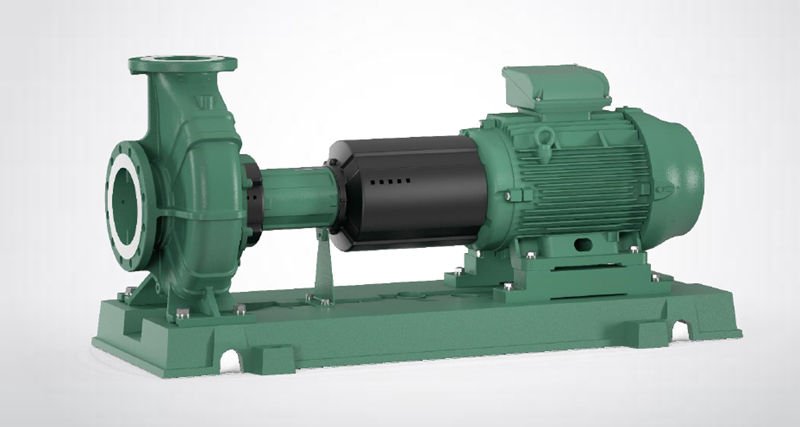

Design Type

Single-stagestage,lowlow-pressure centrifugal pump with axial suction, mountedmountedon abaseplatebaseplate.

Benefit

  • Energy-saving thanks to increased overall efficiency through improved hydraulics and the use of IE3 motors (as an option)option).
  • Cataphoretic coating of all cast components for high corrosion resistance and a long service life.
  • Universally usable thanks to standardised dimensions, a range of motor options and impellers made of different materials.
  • Easy maintenance thanks to user user-friendly spacer coupling in “back pull pull-out” design.
  • High operational reliability thanks to improved impeller construction for pressure reduction.

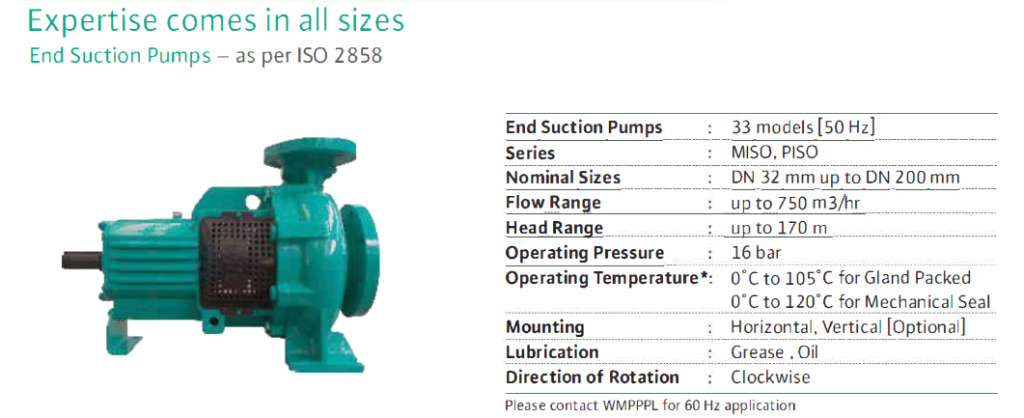

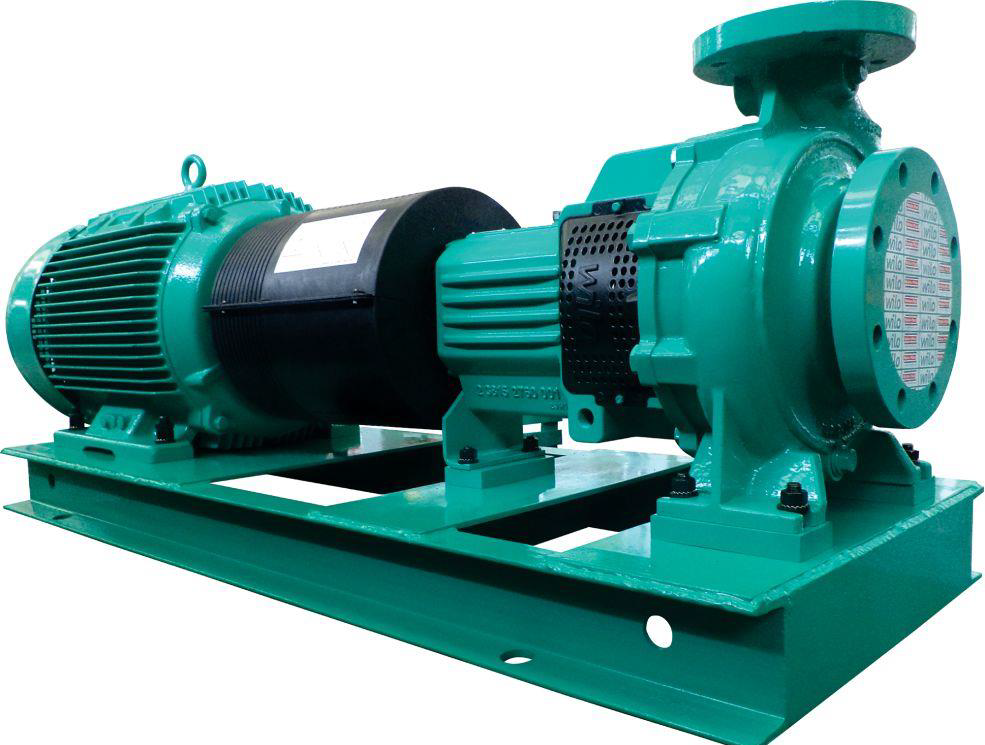

PISO / MISO SERIES

As per ISO 2858
